In stock
Cable Gland -60°C to +70°C
Cable Glands, Cables, Glands and Accessories, Normalfor Zone 1/21
03-606*-0***
Benefits
- IP66/68
- Ex “e” or Ex “i”
- Zones 1/21 and 2/22
-
Description
Marking
ATEX:
II 2G Ex e II
II 2D Ex tb IIIC DB IP 68
Ambient Temperature
-60 °C ≤ Ta ≤ +70 °C Silicone
-40 °C to +60 °C
Certification
-
ATEX
- EN
-
IECEx
- EN
-
CCC
- ZH
-
INMETRO
- PT
-
UKCA
- EN
-
DNV_GL
- EN

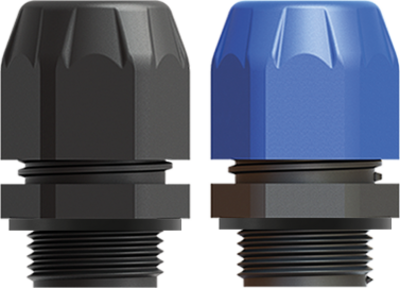

The cable gland made of polyamide is used for inserting permanent cables and leads into electrical equipment with the increased safety “e“ type of explosion protection. The cable glands conform to the protection class IP 66/68.
For intrinsically safe circuits the cable entries are available with a blue cap nut.
When this cable gland is used, the instructions given in the type examination certificate/operating instructions must be observed.
Technical Data
| Protection class | IP 66/IP 68 (EN 60529) |
| Material | Polyamid, self-extinguishing Seals: EPDM Colour: RAL 9005, black; RAL 5015, blue |
Data Sheets
Data Sheet – Cable Gland
