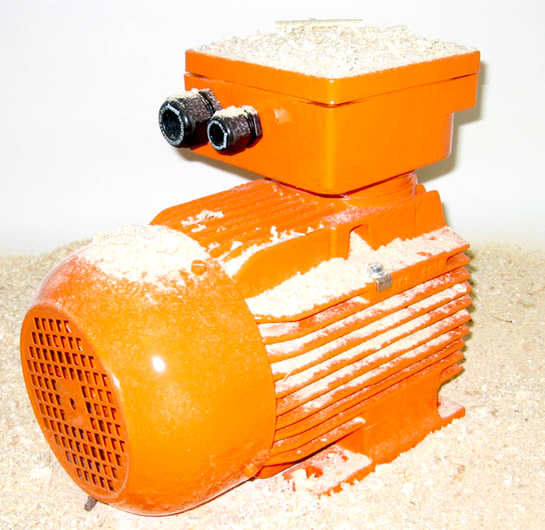

Dust Proof Electrical Motors
Electric MotorsLow voltage IEC motors for Hazardous DUST Areas
Benefits
- Highest degree of safety and reliability
- Certified for dust group IIIC (conductive dusts, non-conductive dust and combustible flyings)
- Modular design, which allows execution of all IEC forms and different positions/rotations of connection box
- ATEX, IECEx, Kosha …
- Ingress protection range: IP65
- Suitable for Ambient Temperatures from -50°C to +85°C
- Temperature class T135°C as a standard, other variants also available on request
-
Description
Marking
ATEX:
II 2D Ex tb IIIC T135°C Db
IECEx:
Ex tb IIIC T135°C Db
Ingress protection
Standard IP65
Ambient temperature
Standard -20 °C up to +40 °C
On request from -30 °C up to +85 °C
Ambient Temperature
Standard: -20 °C up to +40 °C
On request: -50 °C up to +85 °C
Certification
-
ATEX / frame sizes 71-225
- EN
-
ATEX / frame size 250
- EN
-
IECEx / frame sizes 71-225
- EN
-
IECEx / frame size 250
- EN
-
IECEx / frame size 280
- EN
-
KOSHA / frame sizes 71-160
- KR
-
KOSHA / frame sizes 180-225
- KR
-
EAC
- RU
-
CCC
- CN
Dust-proof electric motors are used in industrial plants with a potentially explosive dust atmosphere, containing conductive dust, non-conductive dust and combustible flyings). The enclosures of electric motors are designed to be “flameproof” according to EN 60079-0 (IEC 60079-1).
These are three-phase asynchronous electric motors with shot-circuit rotor, according to the EN 60079-0, EN 600079-1, EN 600079-7 and EN 60079-31 standards.
- Efficiency class IE1, IE2, IE3
- Efficiency class IE4 on request
- Enclosure Ex tb (cast iron flameproof design)
- Frame size 71 – 315
- Power up to 200 kW
Manuals/Operating Instructions/Guides
-
Manual instructions / 4KTC 71-132
- SL-EN-FR-DE
-
Manual instructions / 4KTC 160-225
- SL-EN-FR-DE
-
Manual instructions / 4KTC 250-315
- SL-EN-DE
-
Manual instructions / 5KTC 250-315
- SL-EN
Declarations
-
EU Declaration of Conformity / 4KTC 71-225
- EN
-
EU Declaration of Conformity / 4KTC 250-315
- EN
-
EU Declaration of Conformity / 5KTC 250
- EN
-
EU Declaration of Conformity / 5KTC 280
- EN
