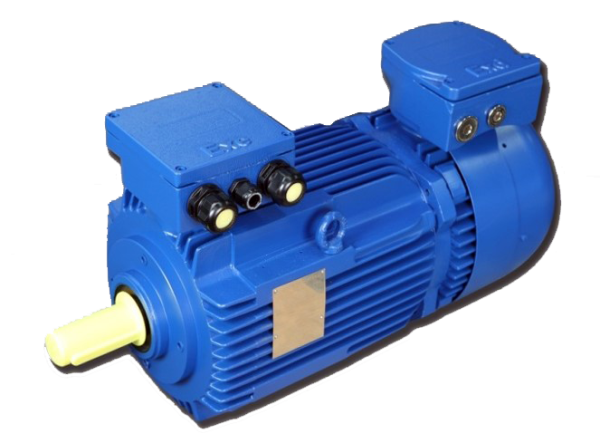

Flameproof Electrical Brake Motors
Electric MotorsLow voltage IEC brake motors for Hazardous Areas
Benefits
- Highest degree of safety and reliability
- Certified for gas groups IIB and IIC
- Modular design, which allows execution of all IEC forms and different positions/rotations of connection box
- Ex db or Ex db eb cast iron frame and connection box
- ATEX, IECEx …
- Wide ingress protection range: IP55 up to IP66
- Suitable for Ambient Temperatures from -50°C to +85°C
- Temperature class T4 as a standard, T5 & T6 also available on request
-
Description
Marking
ATEX:
II 2G Ex db IIB, IIC T4 Gb (T5 & T6 on request)
II 2G Ex db eb IIB, IIC T4 Gb (T5 & T6 on request)
II 2D Ex tb IIIC T135°C Db
IECEx:
Ex db IIB, IIC T4 Gb (T5 & T6 on request)
Ex db eb IIB, IIC T4 Gb (T5 & T6 on request)
Ex tb IIIC T135°C Db
Ingress protection
Standard IP55
On request up to IP66
Ambient temperature
Standard -20 °C up to +40 °C
On request from -50 °C up to +85 °C
Ambient Temperature
Standard: -20 °C up to +40 °C
On request: -50 °C up to +85 °C
Certification
-
ATEX
- EN
-
IECEX
- EN
Explosion-protected brake electric motors are used in industrial plants with a potentially explosive atmosphere, containing inflamable fumes (vapours) or gases (i.e. chemical industry, oil refineries,…) as well as in mines where methane is present. The enclosures of electric motors are designed to be “flameproof” according to EN 60079-0 (IEC 60079-1). The terminal boxes could also be in “flameproof” design or also in “increased safety” design according to EN 60079-7 (IEC 60079-7).
These are three-phase brake asynchronous electric motors with shot-circuit rotor, according to the EN 60079-0, EN 600079-1, EN 600079-7 and EN 60079-31 standards.
- Efficiency class IE1, IE2, IE3
- Enclosure Ex db
- Enclosure Ex db eb
- Frame size 71 – 315
- Power up to 200 kW
