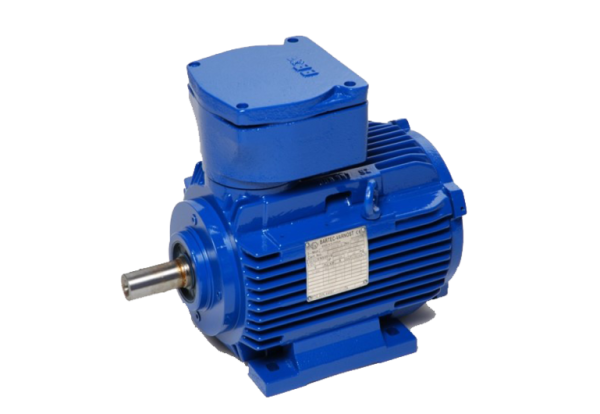

IP68 Submersible Electrical Motors
Electric MotorsLow voltage IEC motors for Hazardous Areas
Benefits
- Operation in submersible condition up to 12m depth
- Highest degree of safety and reliability
- TENV – Totaly enclosed, non ventilated
- Certified for gas group IIB
- Modular design, which allows wide range execution of IEC forms and different positions/rotations of connection box
- Ex db eb cast iron frame and connection box
- ATEX, IECEx …
- Ingress protection range: IP68
-
Description
Marking
ATEX:
II 2G Ex db eb IIB T4 Gb
IECEx:
Ex db eb IIB, IIC T4 Gb (T5 & T6 on request)
Ingress protection
Standard IP68
Ambient temperature
Standard -20 °C up to +40 °C
Ambient Temperature
Standard: -20 °C up to +40 °C
Certification
-
ATEX
- EN
-
IECEx
- EN
-
LR – Lloyd’s Register
- EN
-
EAC
- RU
Our experience in hazardous areas and our flexibility, permits us to answer the most special requirements for different applications of fameproof motors. Such motors are designed for use in industrial areas, where motors should partially run under water and partially in hazardous areas, for example in sewage systems, as part of drive pumps, grinders, valves, etc… Due to robust design, quality and know-how, many of our IP68 motors are also used in non-hazardous areas, especially in plant areas and facilities with flood zones.
These are three-phase asynchronous electric motors with shot-circuit rotor, according to the EN 60079-0, EN 600079-1, EN 600079-7 and EN 60079-31 standards.
• Maximal depth 12 m
• TENV – Totaly enclosed, non ventilated
• Thermal overload protection with PTC or PTO
• Insulation class F
• Modular construction
