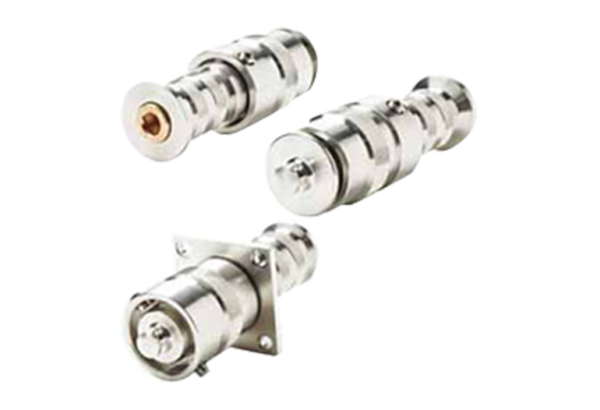

Amphenol Amphe-EX
Electrical Components, Isolator Terminal, Plugs and SocketsFlameproof Connectors for Zone 1
Benefits
- ATEX / IECEx Certified
- Made of high tensile strenght aluminum
- Hard anodic coating
- Rated for IP66 and IP68
- Compact design
- A broad variety of insert configurations are available
- Available with RJ45 and USB inserts
-
Description
Marking ATEX: IECEx: Ambient Temperature -20 °C to +40 °C Certification ATEX
II 2 G Ex db IIC T5 Gb
II 2 G Ex db eb IIC T5 Gb
II 2 D Ex tb IIIC T95°C Db
Ex db IIC T5 Gb
Ex db eb IIC T5 Gb
Ex tb IIIC T95°C Db
EN
IECEx
EN
Miniature, heavy duty explosion-proof series in high grade 316 stainless steel. Equipped to handle signal, power, RF, fiber optic and Ethernet in the most harsh environments. Available with RJ45 and USB inserts. Smaller interface than most ATEX-rated connectors. Also available in high tensile strength aluminum with hard anodic coating.
Technical Data
| Protection class | IP68 |
|---|---|
| Structure | Double lead threaded coupling system Wide variety of EX cable glands |
| Shock resistance | Shock resistance 60G |
| Connection | Inserts 2 # 12 awg, up to 100 # 22D awg contacts Numerous hybrid inserts available that offer combination copper and Coax/Twinax. /fiber |
Data Sheet
Data Sheet – Plug connection 63 A, 4-pole and 5-pole
