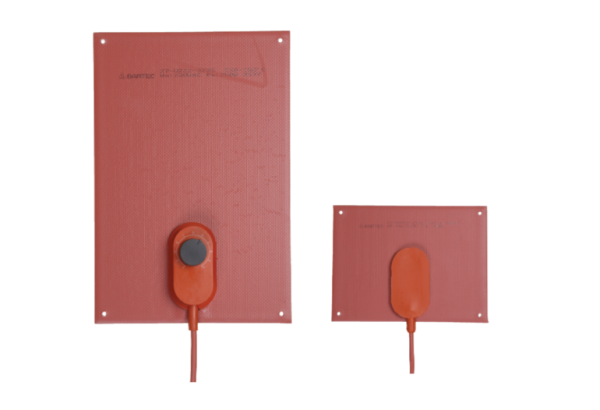

Silicone Heater Plate for Control Cabinets SSM
Constant Wattage, Heating RadiatorsConstant Wattage
Benefits
- Space saving thanks to its flat structure
- Good and uniform heat distribution thanks to the uniplanar structure
- Random mounting position
- Excellent resistance to chemicals
-
Description
Marking
NA
Ambient Temperature
Ambient temperature range: -60 °C up to +80 °C
The SSM heater plate can be used for frost protection and as an anti-condensation heater. Its application ensures complete operational safety as the plates prevent malfunctions often due to leakage currents on electrical installations or the corrosion of metal components. Typical applications are switchgear and controlgear cabinets, instrument housings, analyser cases, glove boxes and other enclosures.
Technical Data
| Nominal voltage | AC 230 V |
|---|---|
| Heat Output | 40 W/100 W/250 W |
| Min. Ambient temperature | -60 °C |
| Max. Ambient temperature | +80 °C (at Type 27-0222) |
| Plate temperature | +70 °C (pre-set value) adjustable from +30 °C to +150 °C |
| Material | baseplate – aluminium sheet, anodised 1.0 or 1.5 mm thick Insulation – silicone rubber approx. 1.5 mm thick heating element – CrNi or constantan wire supply cable – of silicone 2 x 0.75 mm2, 0.5 m long |
| Protection class | Type 27-0212-… IP 53 Type 27-0222-… IP 51 |
