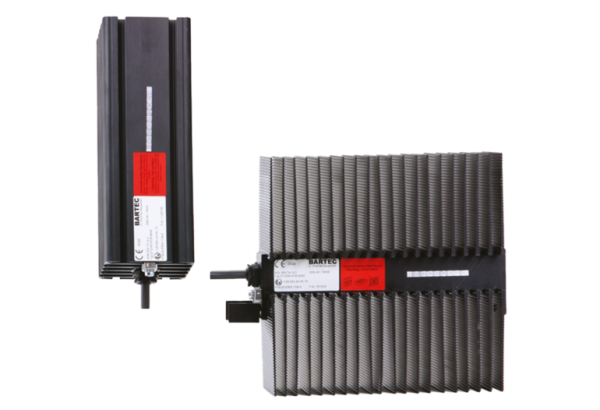

Radiators HCS, HCM, HCL
Constant Wattage, Heating RadiatorsBenefits
- Various compact types of construction, therefore favourable mounting dimensions
- High heating capacity
- Large, black anodized convector surface
- Ready for connection, maintenance-free
-
Description
Marking ATEX:
Ambient Temperature Service temperature range: -60 °C up to +80 °C
Certification
II 2G Ex db IIC T4, T3 Gb
II 2D Ex tb IIIC T135 °C, T200°C Db
IECEx:
Ex db IIC T4, T3 Gb
Ex tb IIIC T135 °C, T200°C Db
BARTEC compact radiators are used as antifreezing and anticondensate heaters in potentially explosive areas. Their use guarantees maximum operating safety, since temperature fluctuations are effectively prevented or the required minimum temperatures are maintained. They reliably ensure that no malfunctioning through leakage current in electrical components, or other disturbances through corrosion formation on mechanical installation parts, can occur. Places of use include switch and control cabinets, transmitter protective boxes, measuring equipment, analytical cabinets for sample preparation etc.
Technical Data
| Nominal voltage | AC 230 V |
|---|---|
| Service temperature range | -60 °C to +80 °C |
| Ambient temperature range | -60 °C to +60 °C |
| Connection | Flexible cord EWKF 3 x 1.5 mm2; ∅ 8.1 mm; length 3 m |
| Mounting position | Vertical flow through fins |
| Material | black anodized aluminium resistant to sea water |
