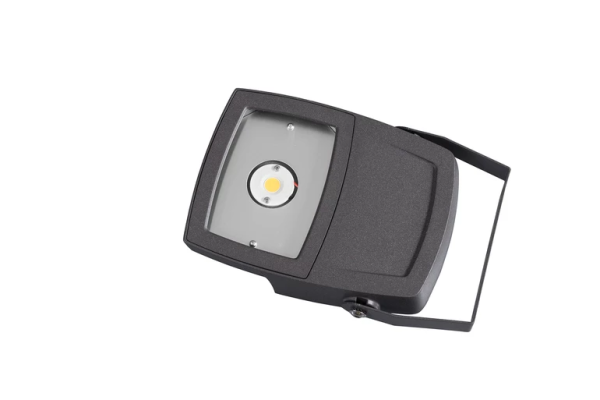

Sflj Led Floodlight
Floodlight, LightingBenefits
- High efficiency
- Long lifetime
- Zone 2, 22
-
Description
Marking ATEX:
Ambient Temperature -40 °C ≤ Ta ≤ +60 °C
Certification
Ex II 3 G Ex ec IIC T4 Gc
Ex II 3 D Ex tc IIIC T135 °C Dc
IECEx:
Ex ec IIC T4 Gc or
Ex tc IIIC T135°C Dc, IP66
With its high protection class IP66, the SFLJ series of floodlights for potentially explosive atmospheres in Zones 2 as well as 22 is suitable for lighting large areas and buildings where there are rough ambient conditions. This lighting series is the ideal solution for medium and high suspension heights, especially for offshore oil and gas production installations, in industrial, chemicals and petrochemicals installations, for pipelines and refineries.
As more efficient lighting technology has been developed, the SFLJ light series has also become available with high performance LED modules. These are ideal for replacing high pressure lamps and keep costs down due to their low energy consumption and long service life.
Technical Data
| Protection class | IP66 (IEC/ EN 60529) |
|---|---|
| Dimensions | see data sheet |
| Material | marine grade copper free aluminium (body) tempered front glass (diffuser) |
| Lifetime | 80.000 hours L80 B10 @Ta 25°C |
| Weight | see data sheet |
| Voltage | 220 – 240 Vac electronic driver 50/60 Hz |
