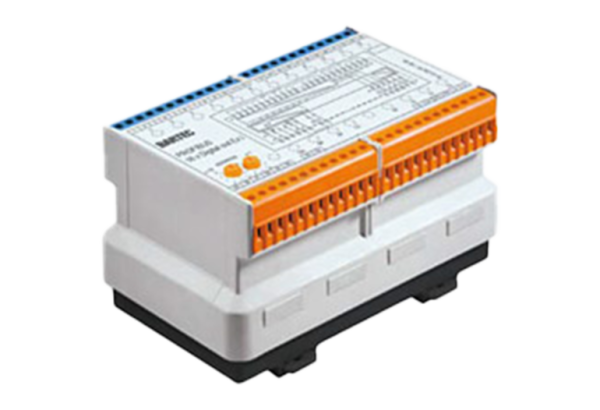

16 x digital out Ex i
Automation Interfaces, PROFIBUS, Remote I/OPROFIBUS-Interface for zone 1/21
- 16 channels
- Direct control of solenoid valves
- Galvanic isolation
- LED display
- Programmable address on front panel
-
Description
Marking
Ex II 2(1)G Ex db e [ib] IIC/IIB Gb
Ex I M2 Ex db e [ib] I Mb
Ex db e [ib] IIC/IIB Gb
Ex db e [ib] I Mb
Class I, Zone 1, IIC
A/Ex d e [ib] IIC Gb
Ambient Temperature
-40 °C to +60 °C at T4
Certification
-
ATEX
- DE
- DE
- EN
- EN
-
IECEX
- EN
- EN
-
CSA
- EN
-
INMETRO
- PT
- PT
In the Ex i version, the MODEX digital out Ex i module can control various actuators using 16 digital outputs. During operation, a channel can be shortcircuited on the short-circuit proof outputs (short-circuit proof to a limited extent). For example, intrinsically safe solenoid valves and intrinsically safe signal transmitters can be controlled as actuators. The controlled actuators can be switched off by an emergency stop via a second power supply connection on the module on terminals U- and U+. The module is connected to the process control system via the PROFIBUS-DP. Coding rotary switches are available for addressing the module. Diagnostics data indicating the status of the outputs with respect to a disconnection or short-circuit can also be transmitted in addition to the user data. This is also displayed on the module itself using LEDs.
Technical Data:
| Protection class | Module: IP 66 EN/IEC 60529 Terminals: IP 20 EN/IEC 60529 Terminals with cover: IP 30 EN/IEC 60529 |
|---|---|
| Structure | Flameproof, clip-on enclosure for TH 35 rail |
| Dimensions | see data sheet |
| Material | High-quality thermoplastic |
| Storage temperature | -40 °C to +60 °C |
| Weight | 2.1 kg |
| Display | Status ON, BF, SF, U2 Outputs LED yellow, active LED red, short-circuit |
| Voltage | Supply voltage (L+, L-, U+, U-): DC 20 V to DC 30 V |
| Output voltage | DC 18.1 V (at U+ ≥ 22 V) |
| Power dissipation | 8 W |
Other:
- GSD
Manuals/Operating Instructions/Guides:
- DE
- EN
- FR
Declarations:
- DE
- EN
- FR
Data Sheets:
Brochures:
-
MODEX Flyer
- DE
- EN
-
MODEX system description
- EN
- DE
Documents:
-
MODEX Flyer
- ES
- FR
- IT
- PT
- RU
- TR
-
MODEX_07-7331-_170x102x96_mm.stp
- .STP
