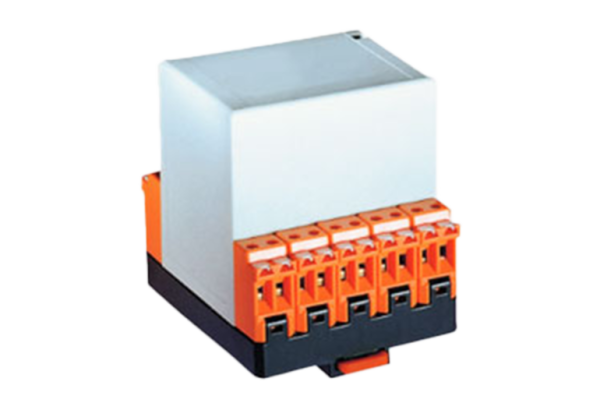

Relay 4 NO/8 NC
Electrical Components, RelaisAC for zone 1/21
Benefits
- switching of measuring and control circuits
- 4 changeovers; 8 NO; 4 NO/4 NC
-
Description
Marking ATEX: IECEx: Ambient Temperature -25 °C to +60 °C at T4 Certification ATEX
Ex EX II 2G Ex db e IIC Gb
Ex EX I M2 Ex db e I Mb
Ex db e IIC oder Ex d e IIC Gb
Ex db e I oder Ex d e I Mb
mounted in sequence on TH at 5 mm spacing
DE
EN
IECEx
EN
CSA
EN
INMETRO
PT
Relay for alternating voltage, neutral, monostable. High-quality cradle relays for AC are installed as encapsulated flameproof elements in the MODEX enclosure. The IP 66 protection class ensures that the contacts are also protected from aggressive atmospheres. Applications: switching of measuring and control circuits in industrial areas.
Technical Data
| Protection class | Module: IP 66/IEC 60529 Terminals: IP 20/IEC 60529 |
|---|---|
| Material | High-quality thermoplastic |
| Contact material | silver, gold-flashed |
| Installation | TH 35 x 7.5 (15) EN 60715 |
| Storage temperature | -40 °C to +70 °C |
| Weight | 0.500 kg |
| Voltage | see data sheet |
| Current | see data sheet |
| Power | max. 40 W / 50 VA |
| Connection | Terminals 2.5 mm², fine stranded |
