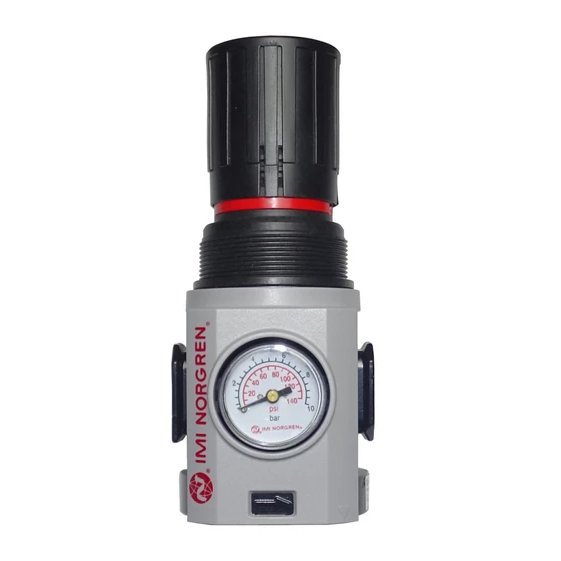

Pressure reducer 1/2″ with pressure gauge
Accessories, PressurizationEx p equipment
Benefits
- Balanced valve design for optimum pressure control
- Push to lock knob with tamber resistant accesory
-
Description
Marking ATEX:
Ambient Temperature Operating temperature
Ex II 2G Ex h IIC T6 Gb
Ex II 2D Ex h IIIC T85°C Db
-20 °C to +65 °C
(-4 °F to 149 °F)
This upstream connecting pressure reducer is a diaphragm pressure regulator with secondary venting for lowering the pressure of externally supplied compressed air. The settings are made by means of a handwheel. The set reduced pressure can be read on a pressure gauge.
Technical Data
| Material | Body: Die cast aluminium Bottom covers: Acetal Bonnet: POM / Aluminium Valve: PP Elastomers: NBR |
|---|---|
| Pressure | Max. input pressure (p1): 20 bar Pressure regulation range (p2): 0.3 to 10 bar, infinitely variable |
| Installation | The mounting position is optional, pay attention to the flow direction marking (arrow) on the enclosure; Mounting in cabinet borehole dia. 21 mm |
| Weight | With pressure gauge approx. 0.6 kg |
| Connection | Air connection G 1/2″ |
Data Sheets
Data Sheet – Pressure reducer 1/2″ with pressure gauge
