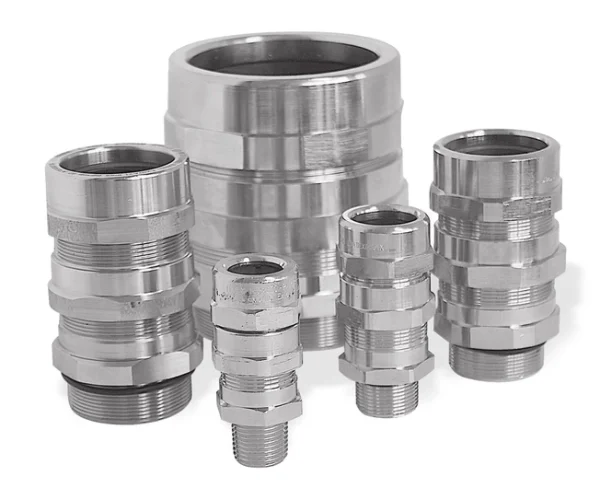

PAPD cable glands
Amoured, Cable Glands, Cables, Glands and AccessoriesBenefits
- For steel wire armoured cables (SWA) for steel tape armoured cables and for lead inner sheath cables
- Double Compression type for Indoor and Outdoor use
- IP 66 or IP66/68
- Barrier cable glands series PAPDB
-
Description
Marking
ATEX:
(Ex II 2 G) Ex db IIC Gb
(Ex II 2 G) Ex eb IIC Gb
(Ex II 2 G) Ex ia IIC Gb
(Ex II 2 D) Ex tb IIIC Db
(EX II 3 G) Ex nR IIC Gc
(EX II 3 D) Ex tc IIIC Dc IP66 or IP68
IECEx:
Ex db IIC Gb
Ex eb IIC Gb
Ex ia IIC Gb
Ex nR IIC Gc
Ex tb IIIC Db
Ex tc IIIC Dc
IP66 or IP66/68
Ambient Temperature
-40 °C to +90 °C standard
(rubber rings EPDM-60)
-60 °C to +180 °C on demand
(rubber rings SILICON)
-40 °C to +60 °C
Certification
-
ATEX (Ex d)
- EN
-
ATEX (Ex nR)
- EN
-
IEXEx
- EN
-
CCC
- EN
-
ECASEx
- EN
-
INMETRO
- PT
-
CCOE-PESO
- EN
Flameproof Ex d cable glands for armoured and lead sheathed cables BARTEC PAPD series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
Suitable for:
- steel wire armoured cables (SWA),
- steel tape armoured cables
- lead inner sheath cables
This cable gland PAPD.. – PAPD-B.. series has double compression type for indoor and outdoor use
Technical Data
| Protection class | IP 66 or IP 68 (IEC/EN 60529) |
|---|---|
| Material | Marine grade Aluminium alloy Stainless steel AISI 316L Nickel plated brass OT-58 |
| Weight | see data sheet |
| Dimensions | see data sheet |
| Accessories | |
| Quantity of cable entries | |
| Voltage | |
| Current | |
| Imapct test |
Manuals/Operating Instructions/Guides
-
ATEX – Instruction for use
- EN
- IT
-
IECEx – Instruction for use
- EN
- IT
-
Barrier Cable Glands – sealing only instructions
- EN
- IT
-
INMETRO – Instruction for use
- EN – PT
Declarations
-
ATEX (Ex d) – Declaration of conformity
- EN
- IT
-
IECEx – Declaration of conformity
- EN
- IT
-
ATEX (Ex nR) – Declaration of conformity
- EN
- IT
