Gll Led Lighting Fixtures

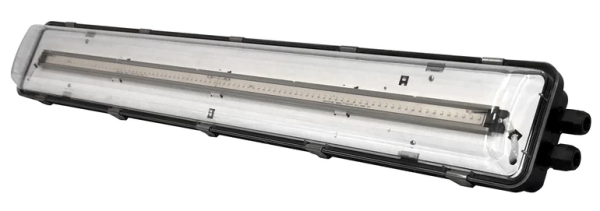

Lighting fixture type GLL is a GRP linear LED luminaire available in normal and emergency version. It is an explosion-protected item intended for use in surface industries (group IIC and IIIC), in areas where, during normal activities, explosive atmospheres caused by gases, vapors, mists, and/or air/dust mixtures are likely to occur. It has been designed to be capable of functioning in conformity with the operational parameters and ensures a high level of protection. It is used to illuminate operating and storage facilities in potentially explosive areas and may be deployed in Zones 1, 2 as well as 21 and 22.

The luminaire with the type of protection “Ex db eb mb tb” is available in a 2-strip LED version. For the electrical connection, three holes are provided to house the cable glands or blanking plugs, approved for the explosion-protected area (“Ex eb” – M25x1.5), whereby two of these holes are sealed with blanking plugs in the factory. As standard, the luminaire is designed for internal through-wiring. The electrical connection of entry and exit lines is possible on opposite sides. Diverse mounting accessories make it possible to install the luminaire with wall or ceiling mounting, pole mounting, or pendant mounting.

Technical Data
