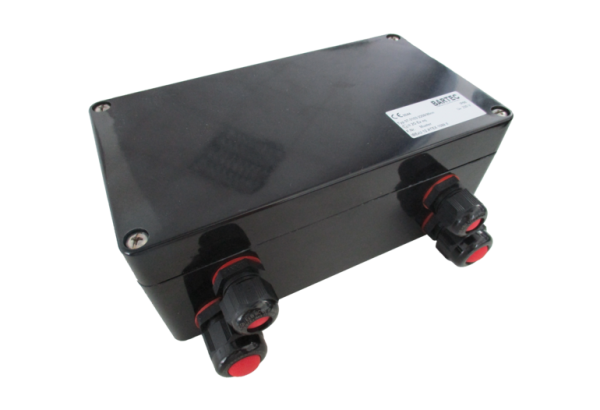

Ex p Relay – Power
Accessories, PressurizationRelease module for Ex p equipment
Benefits
- Compact design
- Easys integration into control systems
- High switching capacity
-
Description
Marking ATEX: Ex II 2G Ex eb qb IIC T4 Gb IECEx:
Ambient Temperature Operating temperature Storage temperature Certification ATEX: DE, EN
Ex II 2D Ex tb IIIC T130°C Db
Ex eb qb IIC T4 Gb
Ex tb IIIC T130°C Db
+25 °C to +65 °C
(77 °F to 149 °F @ T4)
-25 °C to +60 °C
(-13 °F to 140 °F)
IECEx: EN
EAC: RU
The Ex p Relay – Power is designed for safe isolation of supply lines directly in hazardous areas. It can be used together with the BARTEC pressurized enclosure systems APEX or SILAS. The Ex p Relay – Power has four galvanically isolated switch contacts which open the contacts when the voltage is removed. Safe opening of the contacts is ensured by two relays connected in series. By means of the switching capacity of 400V, 16 A and 4kW up to three phases supply lines can be disconnected.
Technical Data
| Protection class | IP 66 |
|---|---|
| Dimensions | 220 mm x 120 mm x 90 mm |
| Material | Polyester, gas fiber reinforced |
| Rated voltage | 230Vac , 110 Vac, 24 Vdc |
| Max. switching voltage | 400 Vac or 28 Vdc |
| Max. switching current | 16 A |
| Breaking Capacity | 4000 VA |
