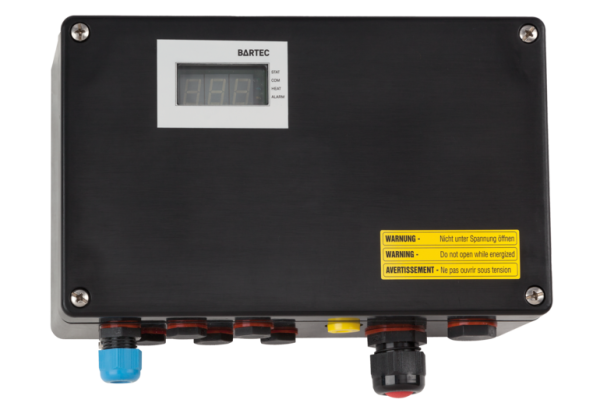

ESTM / ESTM-L
Control, Monitoring and Sensing, Line Sensing, LocalElectronic Supervision and Controller device with optional SIL 2 Limiter
Benefits
- Switching capacity up to 30 A
- Predictive maintenance
- Ta -55 °C to +55 °C
- SIL II Limiter
-
Description
Marking Ex II 2G Ex eb mb [ib] [60079-30-1] IIC T6… T5 Gb
Ambient Temperature -55 °C to +55 °C
Certification
Ex II 2D Ex tb [ib] [60079-30-1] IIIC T80 °C Db
This local control and monitoring solution from BARTEC is equipped with a Bluetooth interface for configuration and monitoring.
It can be connected to a DCS via Modbus. An in-built SIL 2 limiter can be optionally added.
Thanks to its rugged design the ESTM/ESTM-L unit can be used anywhere in the world in the broad temperature range from -55 °C to +55 °C.
Technical Data
| Supply voltage: | 230 V ±10 %, 50 to 60 Hz, 15 VA |
|---|---|
| Load capaty: | 230 V/400 V up to 30 A |
| Protection class | IP 65 according to ATEX/IECEx |
| Controller | |
| Characteristics | Two-point (ON/OFF)
SIL2 Limiter optional |
| Sensor input: | Pt100 three wire, intrinsically safe |
