CPSCP/CPH Panel Receptable
Electrical Components, Plugs and SocketsBenefits
- Ex d
- Closing plug available
- IP66
-
Description
Marking ATEX: IECEx: Ambient Temperature -60 °C to +60 °C (standard) Certification ATEX
(Ex II 2 G) Ex db IIC T6/T5/T4 Gb
(Ex II 2 D) Ex tb IIIC T85°C/T100°C/T135°C Db IP66
Ex db IIC T6 or T5 or T4 Gb
Ex tb IIIC T85°C or T100°C or T135°C Db IP66
EN
IECEx
EN
CCC
ZZ
ECASEx
EN
INMETRO
PT

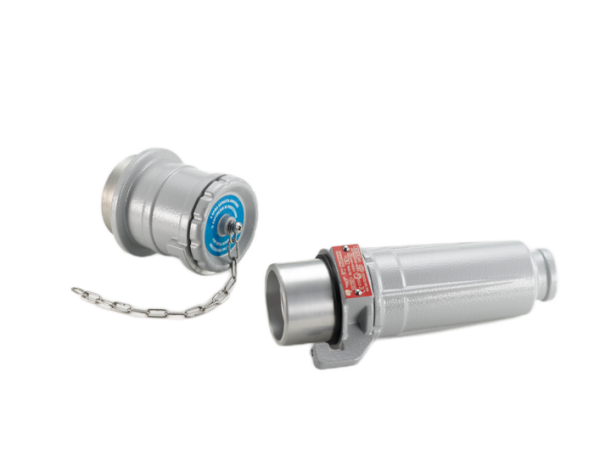

Flameproof Ex d interlocked panel receptacles BARTEC CPSCP../FSQCP.. series are designed to be installed in industrial plants, where potential hazardous atmos-pheres occur. These areas are either classified as zone 1 and 2 or as zone 21 and 22. The sockets and plugs of this series composed of a body and a cover made of copper-free aluminium alloy. Externally painted with epoxy powder. The sockets have a disconnecting switch that can only be operated when the plug has been fully inserted. Plugging is possible only when the disconnecting switch is opened. A closing plug in copper-free aluminium alloy, with an anti-lost chain, closes the socket seat when the plug is not inserted.
Technical Data
| Protection class | IP 66 (IEC/EN 60529) |
|---|---|
| Material | Aluminium alloy |
| Weight | see data sheet |
| Dimensions | see data sheet |
Manuals/Operating Instructions/Guides
ATEX – Instruction for use
- EN, IT
IECEx – Instruction for use
- EN, IT
INMETRO – Instruction for use
- EN
Declarations
ATEX – Declaration of conformity
- EN, IT
IECEx – Declaration of conformity
- EN, IT
Data Sheet
Data sheet – Interlocked switch sockets and plugs
