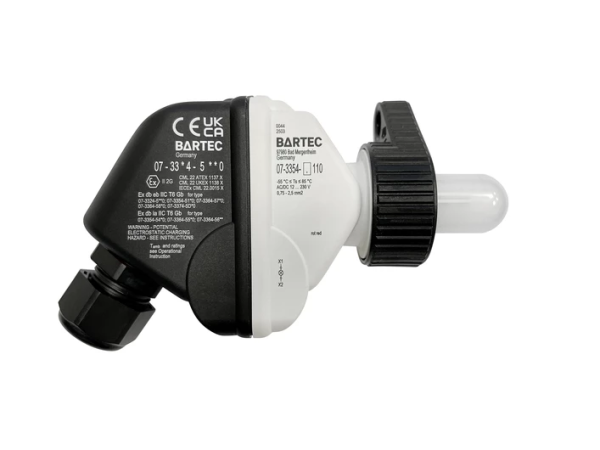

ComEx Global Modules With Junction Box
In stock
ComEx Global Modules With Junction Box
ComEx Global (UL), Electrical Components, Operating and Indicator devicesPanel-mounted installation for Zone 1
Benefits
- High flexibility
- Compact design
- Simple installation
-
Description
Marking
ATEX/UKEX:
Ex II 2G Ex db eb IIC T6 Gb
Ex II 2G Ex db ia IIC T6 Gb
IECEx:
Ex db eb IIC T6 Gb
Ex db ia IIC T6 Gb
Ambient Temperature
-55 °C ≤ Ta ≤ +60°C
(-67 °F ≤ Ta ≤ +140°F)
Certification
-
ATEX
- EN
-
IECEx
- EN
-
UKEX
- EN
-
ECAS
- EN
The ComEx Global modulos with junction box with cable gland is designed for combining with various function modules. Two screws are used to connect the junction box to the respective function module. The ComEx Global modulos with junction box allows a conductor to be connected, which can be assembled either to order or by the customer.
| Degree of protection | Function module with junction box and actuating element: Up to IP66/IP67 |
|---|---|
| Electrical parameters |
See operational instruction of the respective function module |
| Cable gland clamping range |
-5 to 10 mm (0.2 to 0.39 in) |
| Mounting | Screwed to the function module |
| Shock resistance | DIN EN 60068-2-27: 30 g 18 ms |
| Weight | Approx. 40 g (0.09 lb) |
CAD data
ComEx Global junction box
- STP
Manuals/Operating Instructions/Guides
Operating Instructions – ComEx Global modules with junction box
- DE
- EN
Declarations
EU-Declaration of Conformity – 01-3304-7C0001
- DE
- EN
- FR
Data Sheets
Data Sheet – ComEx Global modules with junction box
