ComEx Global Control and Indicating Station
Command and Signalling Devices, Electrical SystemsBenefits
- Easy installation
- Certified for zone 1 and 21
- Globally certified
- High IP rating up to IP67
- and NEMA 4X
- Configurator for customer-tailored solutions
-
Description
Marking
ATEX/UKEX:
Ex II 2G Ex db eb IIC T6 Gb
Ex II 2G Ex db ia IIC T6 Gb
Ex II 2D Ex tb IIIC T80 °C Db
IECEx:
Ex db eb IIC T6 Gb
Ex db ia IIC T6 Gb
Ex tb IIIC T80°C Db
CEC:
Ex db eb IIC Gb
Ex db ia IIC T6 Gb
Ex tb IIC T80 °C Db
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups F, G
Class III, Division 2, T6, T80 °C
NEC:
Class I, Zone 1, AEx db eb IIC T6 Gb
Class I, Zone 1, AEx db ia IIC T6 Gb
Zone 21, AEx tb IIIC T80 °C Db
Ambient Temperature
-55 °C to +60 °C
(-67 °F to +140 °F)
Certification
-
ATEX
- EN
-
IECEx
- EN
-
UKEX
- EN
-
UL
- EN
-
INMETRO
- PT
-
ECASEx
- EN
-
CCC
- EN-CN
- EN-CN
-
SANS
- EN
-
EAC
- ZZ

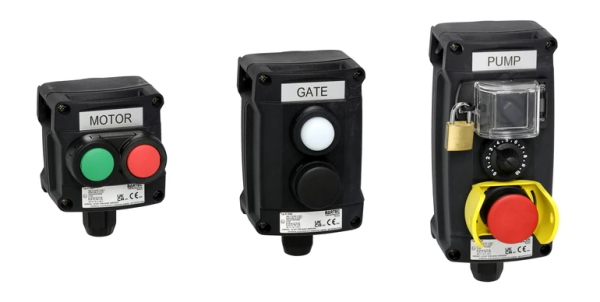

ComEx global control and indicating station, is a flexible system that offers both standardized and also customized local control and indicating stations. It is suitable for use in almost all potentially explosive areas.
The standard enclosures, single, double and triple can be equipped with various actuators and modules. Combinations of a maximum of 2 ComEx devices are possible. The ComEx control and indicating station are developed and certified for globally market.
Our control stations are available in both standard and customized solutions. For tailored configurations, a dedicated configurator is provided. Simply select the required criteria, and the configurator will generate a detailed 3D model of the solution, enabling a swift ordering process and seamless receipt of goods.
Technical Data
| Protection class | Up to IP67 in acc. with EN 60529 and Nema 4X |
|---|---|
| Enclosure | thermoplast |
| Connection | 0.75 mm² – 2.5 mm²/18 AWG – 12 AWG |
CAD data
-
1-fold enclosure
- DWG
- STP
-
2-fold enclosure
- STP
- DWG
-
3-fold enclosure
- DWG
- STP
-
Earth plate M20
- DWG
- STP
-
Earth plate M25
- DWG
- STP
-
Earth plate 2xM20
- DWG
- STP
-
Locking device
- DWG
- STP
-
Shield holder
- DWG
- STP
-
Marking clip
- DWG
- STP
-
Flange set
- DWG
- STP
-
Protective collar with bolt and chain
- DWG
- STP
-
Earth bracket
- DWG
- STP
-
UL-flange set
- DWG
- STP
-
Protective earth connector for external mounting
- DWG
- STP
Manuals/Operating Instructions/Guides
-
Operating Instructions – ComEx Global control and indicating station
- CN
- DE
- EN
- PT
-
Operating Instructions – ComEx Global control and indicating station US
- EN
Declarations
-
EU-Declaration of Conformity – 01-3520-7C0001
- DE
- EN
- FR
-
UK-Declaration of Conformity – 01-3520-7CU001
- EN
Documents
- ZZ
