ComEx Control Stations Stainless Steel
Command and Signalling Devices, Electrical SystemsBenefits
- Standard solutions
- Corrosion resistance
- Configurator for customer-tailored solutions
-
Description
Marking
ATEX:
Ex II 2G Ex db eb IIC T6 Gb
Ex II 2D Ex tb IIIC T80 °C Db
IECEx:
Ex db eb IIC T6 Gb
Ex tb IIIC T80 °C Db
Ambient Temperature
-20 °C to +40 °C
(-4 °F to +104 °F)
-55 °C to +60 °C
(-67 °F to +140 °F)
(depending on the fitted components)
Certification
-
ATEX
- EN
-
IECEx
- EN
-
CSA
- EN
-
CCC
- EN-CN
-
INMETRO
- PT
-
ECASEx
- EN
-
EAC
- ZZ

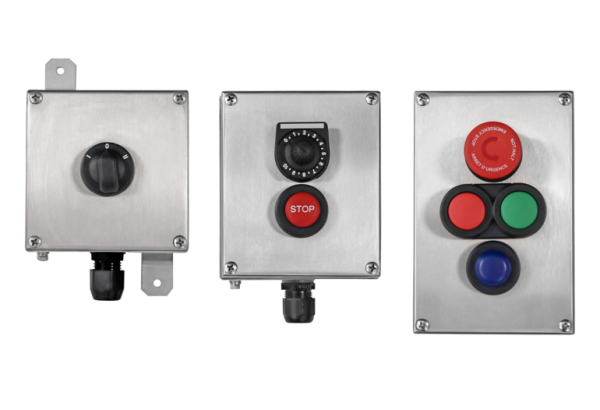

It‘s a question of control, signalling and display units fitted into stainless steel standard enclosures. The enclosures are certified for use in Zone 1 and 2 as well as Zone 21 and 22.
The equipment is highly corrosion resistant due to high quality stainless steels. Either plastic or metal glands are used for electrical connection.
On request, BARTEC will equip the enclosures with corresponding control, signalling and display units and cable glands and supply the required labels.
Our control stations are available in both standard and customized solutions. For tailored configurations, a dedicated configurator is provided. Simply select the required criteria, and the configurator will generate a detailed 3D model of the solution, enabling a swift ordering process and seamless receipt of goods.
Technical Data
| Protection class | IP 65/IP 66 |
|---|---|
| Dimensions | see data sheet |
| Material | stainless steel 316 L, 312 L |
| Connection | Terminals 2.5 mm² |
Manuals/Operating Instructions/Guides
- DE
- EN
- FR
- PT
Declarations
- DE
- EN
- FR
Data Sheets
