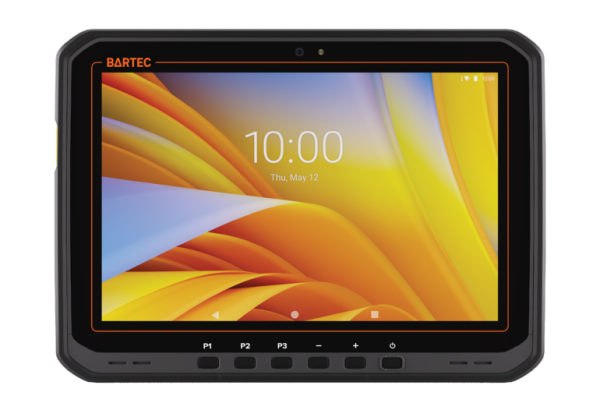

BARTEC ET60/65EX2 Android Tablet

The most versatile Android™ tablet for hazardous areas

Maximize productivity and business efficiency in hazardous areas with 10“ tablets that deliver more features, power, security, and ruggedness.
Co-engineered with Zebra Technologies, these tablets are built like a tank, ready to handle the dust, dirt, and grime in industrial environments.
When it comes to features, these workhorses are loaded with processing power, battery power, data capture power, Wi-Fi 6E and 5G connectivity options, and more. And Zebra Mobility DNA™ adds unmatched value with features that make the tablets easier to use and manage. When the job calls for an intrinsically safe tablet, no matter what features you need, the BARTEC ET60/65^EX2 Android Tablet delivers.

The BARTEC ET60/65^EX2 Android Tablet is approved for ATEX/IECEx Zone 2/22; NEC/CEC 500 Class I, II, III Div. 2; and NEC/CEC 505 Zone 2/22.

Android is a trademark of Google LLC.

Technical Data

Physical characteristics

• Display: 10.1″; 1,000 nits; optically bonded to touchpanel
• Resolution: 1900 x 1200 pixel, WVGA
• Touchpanel: Multi mode capacitive touch with bare or gloved fingertip input or stylus; Corning® Gorilla® Glass
• Size (W x L x H): 275 mm x 199 mm x 18.3 mm (10.8 inch x 7.8 inch x 0.7 inch)
• Weight (with battery): 1,074 g (2.3 lb)

Performance characteristics

• Processor: Qualcomm® 6490 octa-core; 2.7 GHz
• Operating System: Android ^TM 14
• Memory (RAM): 8 GB
• Mass Storage: 128 GB

Power

• Charging: Through USB Type-C (USB PD3.0 compatible) port
• Battery: Lithium-ion battery 4 V/8.920 mAh (36 Wh)

Connectivity and Network

• WLAN-WiFi: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2×2 MU-MIMO; Wi-Fi 6E (802.11ax); Wi-Fi™ certified; Wi-Fi™ 6E Certified; Dual Band Simultaneous; IPv4, IPv6
• Bluetooth: Bluetooth v5.2 Class 1, Bluetooth Low Energy (BLE)
• NFC: ISO 14443 Type A and B; FeliCa and ISO 15693 cards
• SIM (only ET65^EX2 models): 1x eSIM, 1x Nano SIM
• Radio Frequency Band (only ET65^EX2 models): 5G FR1, 4G, 3G; supports LTE/5G private Networking
• GNSS (only ET65^EX2 models): GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS–oncurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA

Camera, Scanner and Audio

• Rear Camera: 16 MP autofocus; flash LED generates balanced white light
• Front Camera: 8 MP; mechanical privacy shade
• Barcode capture (optional): SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology
• Voice & Audio: Stereo speakers and two microphones; audio headset supported through USB port or Bluetooth; speaker/microphone support
• Notifications: Audible tone; 2x multi-color LEDs

Additional Features and Accessories

• Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
• Protection Class (IEC 60529): IP64
• External I/O: 2x USB 3.1 Type A Ports; 1x USB 3.1 Type C Port (with Display Port 1.2 support); Docking connector (charge and data); Keyboard connector; 1x USB 2.0 (back I/O – host only)
• Sensors: Ambient Light Sensor, Magnetometer,  Motion Sensor
• Buttons: Power; Scan; Up/Down (volume or brightness); three programmable keys
• Scope of Delivery: BARTEC ET60/65^EX2 Android Tablet, Standard battery, Quick Start Guide
• Required (not included): Charging accessories
