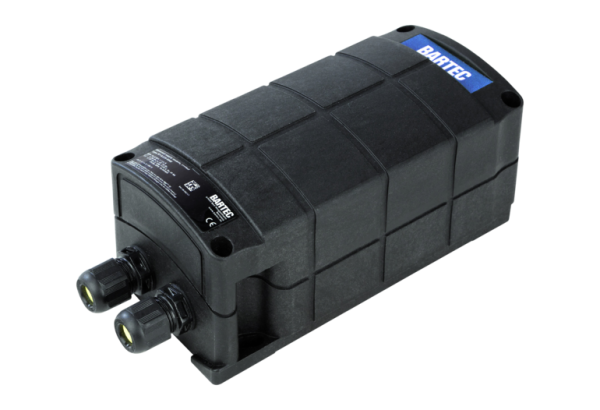

Universal supply module
Accessories, Enterprise MobilityBenefits
- Enables connection of scanner to non-Ex systems
- Variety of serial interfaces and connecting cables supported
- Max. cable length 1.200 m
- Compatible with Ex i and Ex e host interfaces
-
Description
Marking
ATEX:
Ex II 2G Ex eb ma IIC T4 Gb
Ex II 2D Ex tb IIIC T80 °C Db IP64
IECEx:
Ex eb ma IIC T4 Gb
Ex tb IIIC T80 °C Db IP64
Ambient Temperature
-20°C to +50°C (-4°F to 122°F)
Storage temperature
-40°C to +70°C (-40°F to 148°F)
Certification
-
ATEX Zone 1/21
- DE
- EN
-
IECEx Zone 1/21
- EN
-
KC (South Korea)
- KO
- KO
-
CML (Japan)
- ZZ
- EN
-
CQM (China)
- ZZ
The supply modules are used for an intrinsically safe supply (barrier) of the hand-held scanners and contain a safety barrier
(evaluation barrier) for the data lines in a potentially explosive atmosphere.
The data lines can be connected from the hazardous area to non-Ex systems, e.g. PCs or PLCs, without an additional barrier/safety barrier.
The data interface to be used can be set with a barcode. These adjustment possibilities make it easier for an existing old system to subsequently be converted and modified.
Technical Data
| Dimensions | 81 mm x 222 mm x 88 mm (3.2 inch x 8.7 inch x 3.5 inch) |
|---|---|
| Weight | approx. 1050 g (approx. 2.31 lb) |
| IP Rating (IEC 60529) | IP 65 |
| Connection | One hand-held scanner can be connected to the Universal supply module. |
