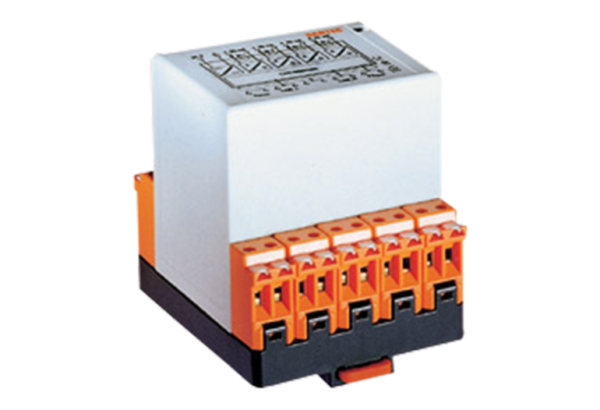

Isolator Amplifier
Electrical Components, Isolator Terminal4-channel With Display for Zone 1/21
Benefits
- 4-channel
- For NAMUR sensors – DIN EN 60947-5-6
- For mechanical contacts Galvanic isolation – DIN EN 60079-11
- LED displays
- Ex ia/ib
- Active transistor outputs
- Additional group fault signal output
- Standard or inverted
-
Description
Marking Ex II 2G Ex db e IIC Gb Ambient Temperature -20 °C up to +50 °C Certification ATEX
Ex I M2 Ex db e I Mb
Ex db e [ia Ga] IIC Gb
Ex db e [ia Ma] I Mb
Class I, Zone 1, IIC
A/Ex d e [ia] IIC Gb
DE
DE
EN
EN
IECEx
EN
EN
CSA
EN
INMETRO
PT
4 NAMUR sensors, optocouplers, mechanical contacts or other operating elements can be connected to the isolator amplifier in an intrinsically safe way. The intrinsically safe inputs are safely galvanically isolated from the supply voltage and the outputs in accordance with EN/IEC 60079-11. Open and short circuits on the sensor lines are detected and signalled via an additional transistor output as group fault signal. LEDs display the output states.
Technical Data
| Protection class | Module: IP 66/IEC 60529 Terminals: IP 20/IEC 60529 Terminals with cover: IP 30/IEC 60529 |
|---|---|
| Material | High-quality thermoplastic |
| Installation | TH 35 x 15 (7.5) EN/IEC 60715 |
| Storage temperature | -40 °C to +60 °C |
| Weight | 0.640 kg |
| Display | LED’s for all outputs |
| Voltage | DC 20 V to DC 30 V |
| Input voltage | 8.2 V |
| Current | max. 580 mA |
| Output current | channel max. 100 mA |
