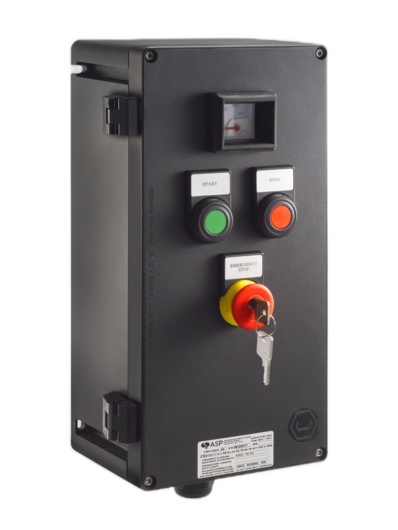

GWRCS Control Station
Command and Signalling Devices, Electrical SystemsBenefits
- Different configurations available
- GRP (Glass Reinforced Polyester)
- for the control and start-stop of the equipment
-
Description
Marking
ATEX:
(Ex II 2 G) Ex d e ia/ib mb IIC T6 or
T5 or T4 Gb
(Ex II 2 D) Ex tb IIIC T85°C or T100°C or T135°C Db IP65/66
IECEx:
Ex d e ia/ib ia ib mb IIC T6 / T5 / T4 Gb
Ex tb IIIC T85°C / T100°C / T135°C Db IP65/66
Ambient Temperature
-50 °C to +60 °C (standard)
-58 °C to +60 °C on demand with TC RU certification
Certification
-
ATEX
- EN
-
IECEx
- EN
-
ECASEx
- EN
-
INMETRO
- PT
-
NEC505
- EN
Increased safety Ex ed Control stations BARTEC GWRCS.. series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
The protection modes are:
- Increased safety “e” in combination with other modes of protection of the installed electrical components.
- By enclosure “t”.
Our control stations are mainly used for the control of the equipment such as motors, fans, pumps etc.Reading of physical quantities such as flow, level, pressure, temperature, current, voltage, frequency, speed control. The arrangement of the components inside the enclosure can be done following different configurations based on particular client’s requirements and always according to the certification limits.
Technical Data
| Protection class | IP 66 (IEC/EN 60529) |
|---|---|
| Material | Glass fiber reinforced polyester resin |
| Weight | see data sheet |
| Dimensions | see data sheet |
Manuals/Operating Instructions/Guides
-
ATEX – Instruction for use
- EN
-
IECEx – Instruction for use
- EN
- IT
-
INMETRO – Instruction for use
- EN
- PT
-
NEC505 – Instruction for use
- EN-FR
Declarations
-
ATEX – EU Declaration of conformity
- EN
-
IECEx – EU Declaration of conformity
- EN
Data Sheets
