Freeze Point Analyzer
Freeze Point Analyzer

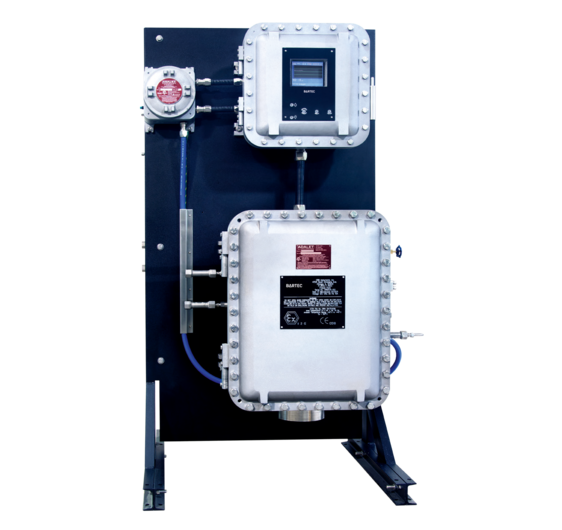

Analyzer and Measurement Technology, Physical Property Analyzers, Process AnalyzersModel P-800LT
Benefits
- Operating range -125 to 25 °C (-193 to 77 °F)
- Straight path absorbance & 90° back-scatter detection
- Rapid analysis cycle of 15 minutes or less
- Superior repeatability of less than 0.5°F (0.25°C)
- Internal Cryo chiller cools to -125°C without external cooling system
- No Sample Recovery System needed, can return directly to process
- Stream switching and validation
- Remote diagnostics over IP
-
Description
Marking Class I, Division 1, Group B, C and D.
Ambient Temperature T6
Certification
Ex db IIB T6 Gb
Ex db IIB T6 Gb
To remain competitive, today’s refiners must employ all optimization and product control techniques available. The use of online physical property analyzers is one of the key features to reach those objectives because they measure important quality properties in the process directly. The freeze point is the temperature at which the last of the wax crystals disappear when warming the sample, after first reaching the Cloud Point temperature.
Technical Data
| Technology | Automatic optical detection, absorbance or reflectance |
|---|---|
| Method | Correlates with ASTM D2386 |
| Measuring cycle | Typical is less than 15 minutes |
| Analog outputs | Freeze Point, cell temperature, optical signals |
| Digital outputs | Freeze point alarm, analyzer fault, come read (programmable) |
| Digital inputs | customer alarm, remote standby, stream switch, validation (dry contact) |
| Display | 7″ color graphics |
| Weight | approximately 340 kg (750 lbs) |
| Dimensions | Approximately 940 x 1803 x 762 mm (37 x 71 x 30 inches) |
| MODBUS interface | TCP/IP or Serial/RTU MODBUS output available |
