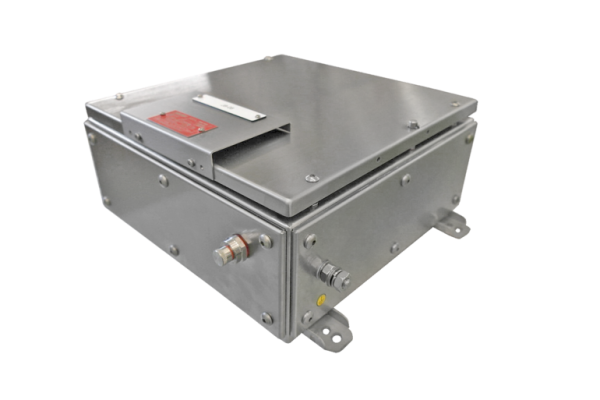

ESX Enclosures
Enclosures and Cabinets, Ex e Empty EnclosuresBenefits
- Chemical-resistant
- Temperature-resistant
- Flame-retardant
- Corrosion-proof
-
Description
Marking
ATEX:
Ex II 2G Ex eb IIC Gb
Ex II 2D Ex tb IIIC Db
IECEx:
Ex eb IIC Gb
Ex tb IIIC Db
Ambient Temperature
Ex enclosuress ambient temperature Max. – 60 °C ≤ Ta ≤ 60 °C (MAX Temperature +160°C with ceramics terminals)
Certification
-
ATEX
- EN
-
IECEx
- EN
Stainless steel boxes have been of great advantage in many industrial plants. They offer safe protection even when they are exposed to extreme environmental conditions, aggressive chemical media or high mechanical stress. The narrow sides within the enclosure hold threaded bushings for the fixing of terminal rails or mounting panels. The enclosure is mounted by means of insulated screws outside of the lid sealing gasket.
These high-quality explosion-proofed enclosures are used in hazardous areas by inflammable gas (Zone 1 and 2) and dust (Zone 21 and 22). The fundamental prerequisites of the “protection through enclosure“ protection class are fulfilled with the heating up calculation as per the accompanying sheet and a separate IP protection tes
Technical Data
| Protection degree | IP66 (IEC/ EN 60529) |
|---|---|
| Dimensions | see data sheet |
| Material | 1.4404, AISI 316 L high quality stainless steel optional: 1.4301, AISI 304 high quality stainless steel Surface: brushed, painted or electro polished on request |
| Weight | see data sheet |
