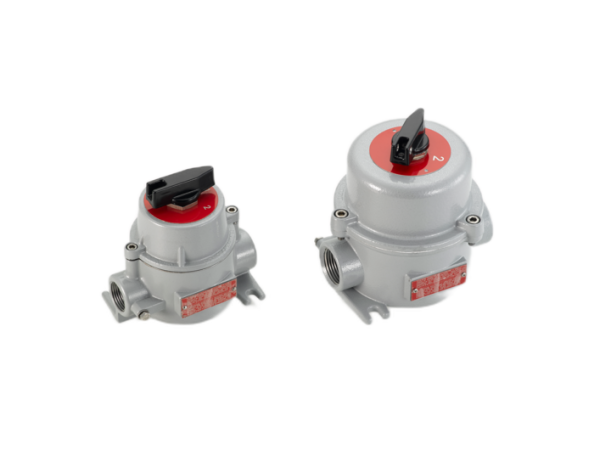

EFSC Rotary Switch
Command and Signalling Devices, Electrical SystemsBenefits
- Command and control units
- Rotary on/off switches
- Rotary two-way switches
- Rotary change over switches
- Motor control switches
- With control handle on the cover
-
Description
Marking
ATEX:
(Ex II 2 G) Ex b IIC T6/T5 Gb
(Ex II 2 D) Ex tb IIIC T85°C/T100°C Db IP66
IECEx:
Ex d IIC T6 or T5 Gb
Ex tb IIIC T85°C or T100°C Db IP66
Ambient Temperature
-60 °C to +60 °C (standard)
Certification
-
ATEX
- EN
-
IECEx
- EN
-
CCC
- ZZ
-
INMETRO
- PT
Flameproof Ex d control stations BARTEC EFSC.. series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
The control stations of this series are used for rotary on/off switches, rotary two-way switches, rotary change over switches, and motor control switches. The motor control switches of this series can be secured to the structure using slots positioned on the body.
Technical Data
| Protection class | IP 66 (IEC/EN 60529) |
|---|---|
| Material | Aluminium alloy |
| Weight | see data sheet |
| Dimensions | see data sheet |
Manuals/Operating Instructions/Guides
-
ATEX – Instruction for use
- EN
- PT
-
IECEx – Instruction for use
- EN
- PT
-
INMETRO – Instruction for use
- EN
- PT
Declarations
-
ATEX – Declaration of conformity
- EN
- IT
-
IECEx – Declaration of conformity
- EN
- IT
Data Sheets
