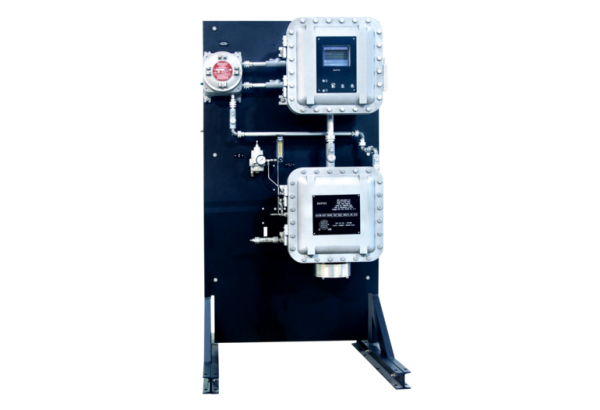

Cloud Point Analyzer
Cloud Point Analyzer
Analyzer and Measurement Technology, Physical Property Analyzers, Process AnalyzersBenefits
- Measuring range -125 to 25 °C
- (-193 to 77 °F)
- Rapid measuring cycles less than 10 minutes
- Superior repeatability of less than 0.5°F (0.25°C)
- Internal Cryo chiller cools to -125°C without external cooling system
- No Sample Recovery System needed, can return directly to process
- Stream switching and validation option
-
Description
Marking Class I, Division 1, Group B, C and D.
Ambient Temperature T6
Certification
Ex db IIB T6 Gb
Ex db IIB T6 Gb
To remain competitive, today’s refiners must employ all optimization and product control techniques available. The use of online physical property analyzers is one of the key features to reach those objectives because they measure important quality properties in the process directly. The cloud point is the temperature at which wax crystals form in a sample as it is cooled giving the sample a cloudy appearance.
Technical Data
| Technology | Automatic optical detection, absorbance or reflectance |
|---|---|
| Method | Correlates with ASTM D2500 |
| Measuring cycle | Typical is less than 10 minutes |
| Analog outputs | Cloud Point, cell temperature, optical signals |
| Digital outputs | Cloud point alarm, analyzer fault, come read (programmable) |
| Digital inputs | customer alarm, remote standby, stream switch, validation (dry contact) |
| Display | 7″ color graphics |
| Weight | approximately 340 kg (750 lbs) |
| Dimensions | Approximately 940 x 1803 x 762 mm (37 x 71 x 30 inches) |
| MODBUS interface | TCP/IP or Serial/RTU MODBUS output available |
