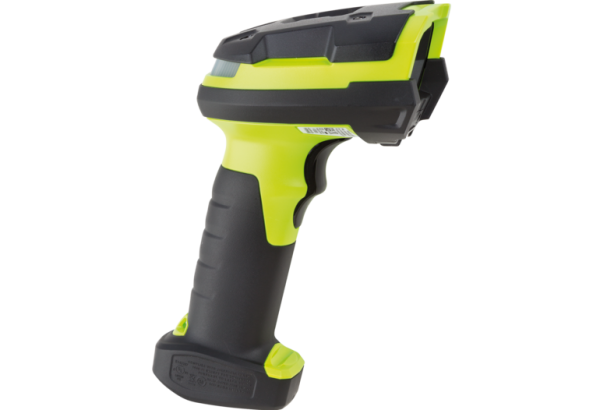

BCS3678ex-NI Hand-held scanner
Barcode Scanners, Enterprise MobilityBenefits
- Extraordinary scanning range
- 100,000 + scans per charge
- Captures up to 20 barcodes simultaneously
- Ultra-rugged
- Widest range of supported interfaces
-
Description
Marking
ATEX:
Ex II 3G Ex ic op is IIC T4 Gc
Ex II 3D Ex ic op is IIIC T135°C Dc IP64
IECEx:
Ex ic op is IIC T4 Gc
Ex ic op is IIIC T135°C Dc IP64
NEC:
Class I Div. 2 Groups A, B, C, D
Class II Div. 2 Groups F, G
Class III; T4
Ambient Temperature
Operating temperature
-20°C to +50°C (-4°F to 122°F)
Storage temperature
-40°C to +70°C (-40°F to 148°F)
(without battery)
Certification
-
ATEX Zone 2/22
- DE
- EN
-
IECEx Zone 2/22
- EN
-
NEC/CEC 500
- EN
-
KC (South Korea)
- KO
- KO
-
CQM (China)
- ZZ
The latest generation of rugged hand-held scanners is the BCS36x8ex series for use in hazardous areas offers outstanding performance for the unparalleled scanning of 1D/2D barcodes, photos, documents and more. The devices are based on the ZEBRA series “DS3608-HP/DS3678-HP Ultra-Rugged Scanners” and are now also available from BARTEC in an explosion-protected version.
The series consists of a corded (BCS3608ex) and wireless (BCS3678ex) version, which are used in the toughest environments in the world – in warehouses and production halls. These scanners not only enable 1D or 2D barcodes to be scanned, they can also be used to capture a wide range of business information, thereby streamlining everyday business processes, such as OCR, documents and photos. Irrespective of the type of data your employees need to collect, you now get all the familiar functions from the industrial application for use in potentially explosive atmospheres. The BCS3600ex series therefore offers a new level of reliability for scanners.
The result? The most reliable, fastest and most accurate scanning functionality on the market, setting new standards.
Technical Data
| Dimensions | 185 mm x 76 mm x 142 mm (7.3 inch x 3.0 inch x 5.2 inch) |
|---|---|
| Weight | with SE4750: 411 g (0.91 lb) with SE4850: 436 g (0.96 lb) |
| IP Rating (IEC 60529) | IP 65 |
| Barcode capture | Zebra SE4750-HP 1D/2D-High-performance scanner omnidirectional Zebra SE4850-ER 1D/2D-High-performance extended read range up to 21.3 m (70 feet) |
