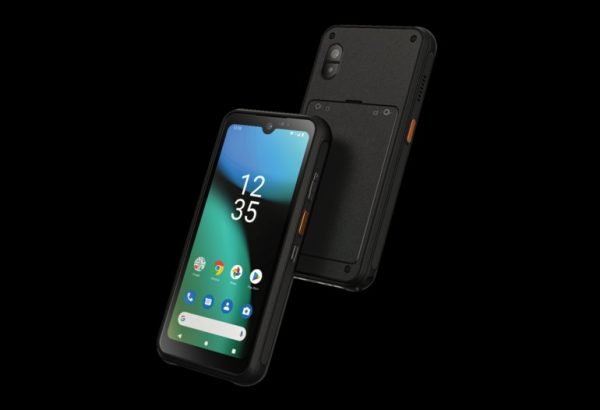

BARTEC SP9EX2 Smartphone
Enterprise Mobility, Smartphones & CamerasBenefits
- Compact and lightweight: Designed and optimized for all-day productivity and one hand use.
- Intrinsically safe design: Over 1,000 dedicated components ensuring ex protection.
- Fast 5G network connectivity: Qualcomm® QCM6490 processor supporting both public and private 5G network connectivity.
- Low-light optimized camera: 48MP main camera and 8MP front camera for video calls.
- Rugged: MIL-STD-810H and IP68 rated for water and dust resistance.
- Global certifications: ATEX/IECEx Zone 2/22 and NEC Class I, II, III, Division 2.
-
Description
Marking
ATEX:
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc IP 64
IECEx:
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc IP 64
NEC/CEC 500/505:
Class I, Div 2, Groups A, B, C and D
Class II, Div 2, Groups F and G
Class III, T4
Zone 2, AEx ic IIC T4 Gc
Zone 22, Aex ic IIIB T135° Dc
Ex ic IIC T4 Gc
Ex ic IIIB T135° Dc
Ambient Temperature
Operating Temperature
-20°C to +55°C (-4 °F to +131 °F)
Charging Temperature
0°C to +40°C (+32°F to +113°F)
Certification
-
ATEX Zone 2/22
- EN
-
IECEx Zone 2/22
- EN
-
NEC/CEC 500/505
- EN
-
IMDA (Singapore)
- EN
-
TDRA (United Arab Emirates)
- EN
-
Qatar
- EN
-
ICASA (South Africa)
- EN
Engineered for the utmost safety and performance in hazardous environments, the BARTEC SP9EX2 Smartphone is synonymous with reliability. Combining a robust yet refined design, it balances ruggedness with elegance, ensuring functionality without compromise.
With a broad range of accessories, AndroidTM 15, and comprehensive lifecycle support, the BARTEC SP9EX2 Smartphone ensures reliable performance from deployment throughout its lifespan, delivering exceptional safety and efficiency in even the most challenging environments.
The device is certified for ATEX/IECEx Zone 2/22 and NEC Class I, II, III, Division 2.
Technical Data
Hardware Specifications
- Processor: Qualcomm® QCM6490 Octa Core 2.7 GHz
- Memory (RAM): 8 GB
- Mass Storage: 128 GB
- Display: 6.1″ AMOLED
- Resolution: 1080 x 2340 pixels
- Front Glass: Gorilla® Glass Victus® (generation 8)
- Touch Function: Capacitive Touch (Stylus, bare or gloved fingertip input)
- Size (L x W x H): 168.7 mm x 83.4 mm x 17.9 mm (6.6 inch x 3.3 inch x 0.7 inch)
- Weight (with battery): 350 g (0.77 lb)
- Battery: Lithium-ion battery 3.68 V/4300 mAh (15.8 Wh)
Connectivity and Network
- SIM: Dual SIM (Nano SIM + eSIM)
- Wireless Connections: WiFi 6, 5G
- Radio Frequency Band:
- 5G NR (Bands: 1-3, 5, 7, 8, 20, 25, 28, 38, 40, 41, 48, 66, 71, 77, 78)
- LTE (Bands: 1-5, 7, 8, 12, 13, 17, 20, 28, 38, 40, 41, 48, 66, 71)
- UMTS (Bands: 1, 2, 4, 5, 8)
- GSM (Bands: 850, 900, 1800, 1900)
- WLAN-WiFi: Wi-Fi 6 IEEE 802.11a/b/g/n/ac/ax, 2×2 MU-MIMO, Dual band Simultaneous (up to 2042 Mbps data rate and 160 MHz bandwidth)
- Bluetooth: Bluetooth® 5.2 (including Low Energy long range and multiple broadcasts)
- GNSS: GPS, A-GPS, Glonass, Galileo, and BeiDou
- NFC: Read/write NFC tags (e.g., ISO 14443 Type A), contactless payments, and card emulation
Camera and Audio
- Back Camera: 48 MP with Auto Focus
- Front Camera: 8 MP
- Voice & Audio: Two microphones, Vibrate alert, Speaker, Bluetooth wireless headset support, High-quality speakerphone
- Notifications: Audible tone, multi-color LEDs, vibration
Additional Features and Accessories
- Operating System: AndroidTM 15
- Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
- Protection Class (IEC 60529): IP68
- External I/O: Charging pins, USB-C Port
- Sensors: Accelerometer/Gyroscope, Magnetometer/Compass, Pressure/Barometer, Proximity, Ambient light
- Buttons: 1x on/off button, 2x programmable function button (for PTT, Emergency call or other functions), 1x volume buttons (+/-)
- Scope of Delivery: BARTEC SP9EX2 Smartphone, Battery, Battery tool, USB-C cable, Quick Start Guide
- Required (not included): USB-C Charger (e.g., Wall Charger Type G7-S0Z0-0014/0015/0016/0017)
Related Products and Accessories
Products:
- BARTEC SP9EX1 Smartphone
- BARTEC SC9EX1 Smartscanner
Accessories:
- 1-slot charging station
- 4-slot charging station
Latest GMS certified SW releases:
| Device model | SW version | Release date | Security patch | Android Security Bulletin | Security update support |
| BARTEC SP9EX2 Smartphone | TWG1.241216.289 | 2024/12/25 | Dec 2024 | Link | Security update support will be available until at least May 2030.
Security updates are released every 90 days. |
| BARTEC SP9EX2 Smartphone | TWG1.250305.305 | 2025/03/07 | Mar 2025 | Link | |
| BARTEC SP9EX2 Smartphone | AWG1.250612.023 | 2025/07/23 | Jun 2025 | Link | |
| BARTEC SP9EX2 Smartphone | AWG1.250822.031 | 2025/08/27 | Sep 2025 | Link |
