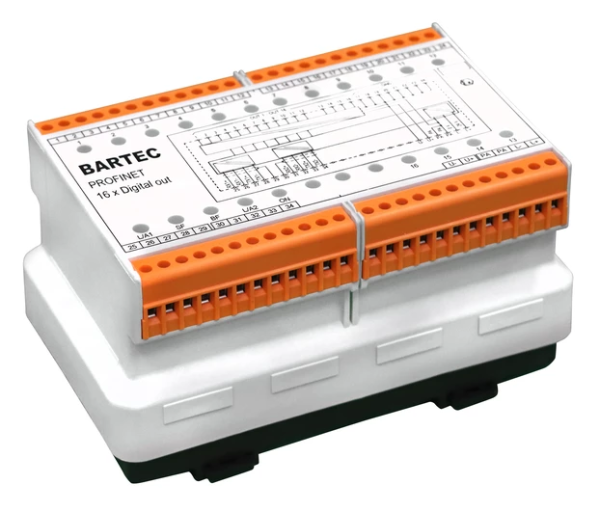

16 x digital out Ex e

In the Ex e version, the MODEX digital out module can control various actuators using 16 digital outputs. During operation, a channel can be short-circuited on the short-circuit proof outputs (short-circuit proof to a limited extent). For example, solenoid valves, contacts and also signal transmitters with 24 V/ max. 500 mA can be controlled as actuators. The controlled actuators can be switched off by an emergency stop via a second power supply connection on the module on terminals U- and U+. The module is connected to the process control system via PROFINET or Modbus TCP. The module is addressed automatically. Diagnostics data indicating the status of the outputs with respect to short-circuit or voltage failure can also be transmitted in addition to the user data. This is also displayed on the module itself using LEDs.
